100 Trail
The game changer
Trail machines are only available in selected countries. For further questions please contact your local sales representative.
Ground breaking control concept, the most powerful engine in its class, intuitive double-joint 4 axis joystick, large display iTerminal with touch function, eco-friendly exhaust gas technology
With an impressive 253 horsepower the Cummins QSB 6.7 motor provides the power and torque needed for the modern day trail drag.
The benefits of Tier 4 technology equate to low emission coupled with less fuel consumption due to reduced engine revs. The engine runs quieter.
Rear draw bar
Maximum strength to handle dead pulls. Break away hydraulic couplers.
X-Track
Maximum traction in hard icy conditions yet will not damage pavement when crossing roadway.
Joystick
With proportional control for intuitive working: The newly developed double-jointed joystick moves freely in all directions.
Armrest
Armrest with convenient and individually programmable customer buttons.
iTerminal
Patented iTerminal with optimized user guide thanks to color labelling of the active areas of the vehicle.
Power and high torque coupled with excellent fuel economy:
The powerful, 6-cylinder in-line diesel engine with common rail fuel injection offers low fuel consumption along with low noise and exhaust emissions. It complies with the Tier 4 final standard thanks to an exhaust gas after-treatment system.

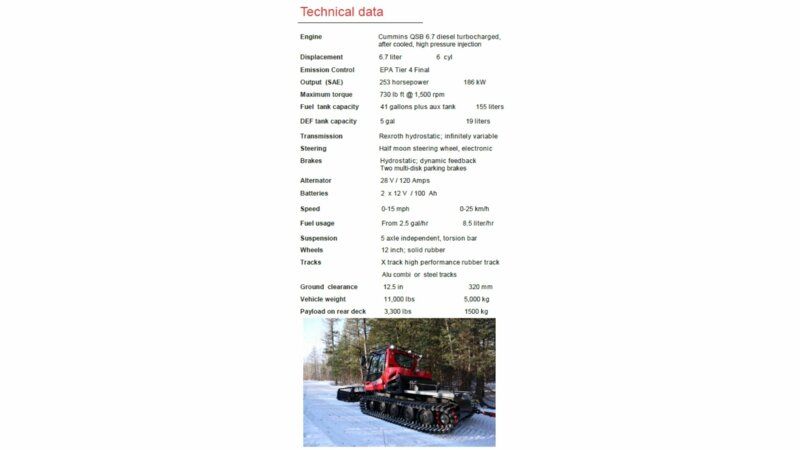

Technical data
| Engine | |
|---|---|
| Type | Cummins QSB 6,7 |
| Number of cylinders | 6 |
| Displacement | 6.7 l / 6,700 cc |
| Power output (ECE) | 186 kW |
| Exhaust emission standard | Tier 4 Final |
| Maximum torque | 990 Nm @ 1,500 rpm |
| Tank capacity | 150 l |
| DEF (AdBlue®) tank | 36 l |
| Fuel consumption | from 8.5 l/h |
| Engine | |
|---|---|
| Type | Cummins QSB 6,7 |
| Number of cylinders | 6 |
| Displacement | 6.7 l / 6,700 cc |
| Power output (ECE) | 186 kW / 253 hp |
| Exhaust emission standard | Tier 4 Final |
| Maximum torque | 990 Nm @ 1,500 rpm |
| Tank capacity | 40 gal |
| DEF (AdBlue®) tank | 5 gal |
| Fuel consumption | from 2.24 gal/h |
As a full-service provider, Kässbohrer not only supplies the technology, but also the appropriate training and software.
