Professional tool for the park

Get in, select personalized settings, drive off – this is now possible with all PistenBully vehicles, in a completely identical manner. Because the new PistenBully 400 completes the family: An entire generation with identical operating comfort and convenience, with the cleanest exhaust technology and the most attractive performance – and all this in the familiar quality.

What remains of the old PistenBully 400 is its perfect balance of force and weight and its outstanding maneuverability thanks to its compact dimensions. What is new and significantly better is the clean engine, the comfort cockpit and the intuitive operation that is also part of the PistenBully 100 and 600 vehicles. The assistance systems are also new, which makes driving even easier. Completely prepared for SNOWsat.

Building parks without the PistenBully 400 ParkPro has been unthinkable for quite a while. The 400 ParkPro is considered the professional tool for more creativity and perfection in the snow park. A highlight of the new generation is the completely overhauled auxiliary equipment – the ProBlade and, above all, the ProFlexTiller.

A fun park constructed with the help of a PistenBully.

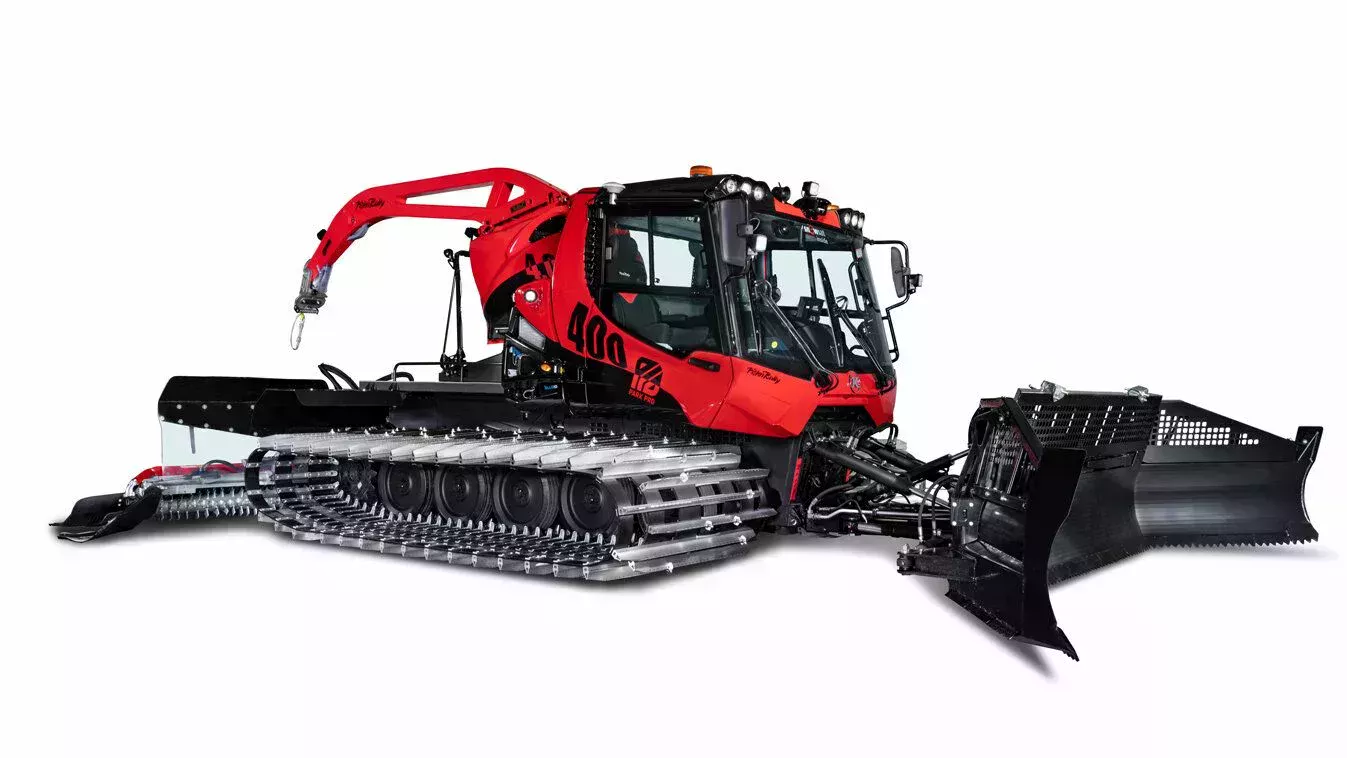

PistenBully 400 parkpro w

The park specialist – the PistenBully 400 in its ParkPro model variant: Developed in cooperation with the best operators and shapers in the world. Adjusted to the luxury of the new generation. Equipped with everything you could want for grooming snow parks.


ProBlade

The ProBlade makes edges even sharper. Its distinct side edges, corners and side cutter shape kickers in even greater detail. The new OneTouchStraight function sets the blade straight without limiting the movement of the side wings forwards or backwards.

Transport tines

Hydraulic control for the easy transport of rails, fun boxes and other park accessories. One person can do this even unassisted. Ideal for competitions.

ProMount swap system

With ParkPro kinematics and reinforced cylinders. No adapter frame necessary.

Park button

Control of the rear carrier via joystick for intuitive operation when building a park and for more comfort when coupling the tiller.

Auxiliary hydraulics

Faster response characteristics with direct and proportional control of all functions.

ProFlexTiller

The ProFlexTiller, with its expanded flex angles, offers a freeze function that can record the existing ground contour in a floating position and lock it hydraulically afterwards. The new hydraulic system also allows for approaching any position, including its end positions, hydraulically.

Showroom
Chassis and chains of PistenBully 400

Chassis and chains

Fully overhauled – the new main frame, the stronger tensioning axle and larger drive pumps.

The new 6-band CombiPlus chain is extremely durable and stable. It conquers every slope and is easy to steer. Stable and capable of climbing!

Implement carrier

The new implement carrier is specially optimized for its main area of application and includes vibration compensation and damping as standard equipment. And it allows for enormous movement radii in park building in particular.

ProMount swap system of PistenBully 400

ProMount swap system

The ProMount swap system offers the optimum kinematics for even greater movement radii in park building. Thanks to strong cylinders and the high-performance proportional hydraulics, all requirements in the park can be met with precision, speed and power.

ProBlade of PistenBully 400

ProBlade

Flexibility is the advantage of the new ProBlade. Integrated hydraulic transport tines are the ideal solution for moving park equipment. The sharp side cutters shape kickers with ideal cutting edges. The OneTouchStraight function sets the blade straight at the push of a button. The wings can nevertheless be tilted backwards for better snow transport.

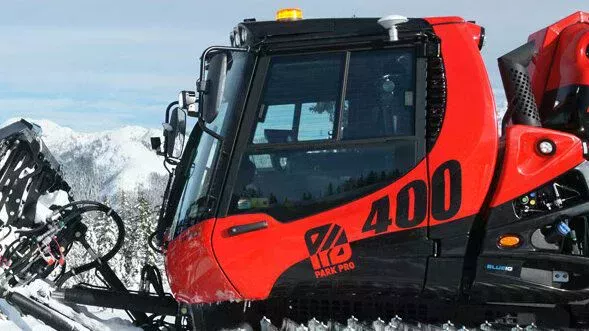

Driver's cab of PistenBully 400

Driver's cab

The operator is in focus. Our cab achieves this principle with comfort, ergonomics and intuitive operation. Large windows, a perfect arrangement and ideal lighting provide a good overview, especially at night. Optimized ventilation and a sun sensor for automatic heating and air conditioning regulation ensure an optimum cab climate. And lest we forget – there are various storage options and beverage holders!

Winch of PistenBully 400

Winch

The AutoWinch is perfectly compatible with the vehicle thanks to cutting-edge technology and provides safety on the slope with corresponding pulling force, active steering and automatic winch force control. All-automatic if desired.

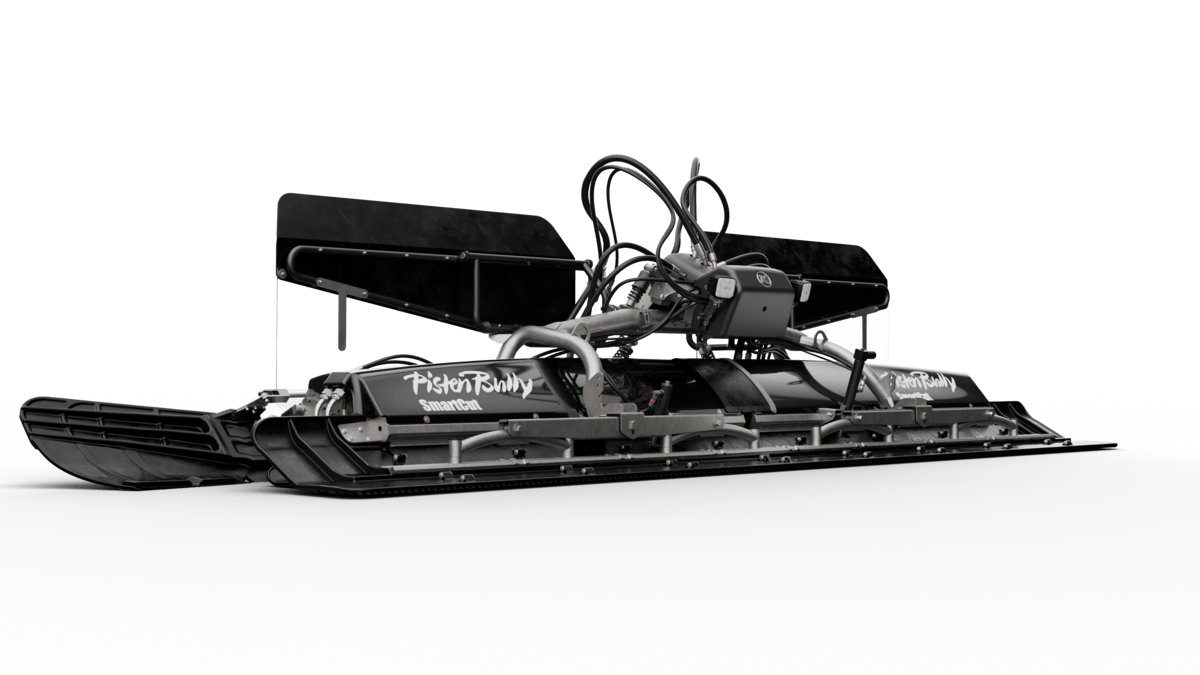

ProFlexTiller

The ProFlexTiller, with its enlarged flex angle and V and A positions, provides optimum adaptation to the properties of the slope. The Freeze function does not just allow operators to approach any position but also to map each and every contour.

V position

A position

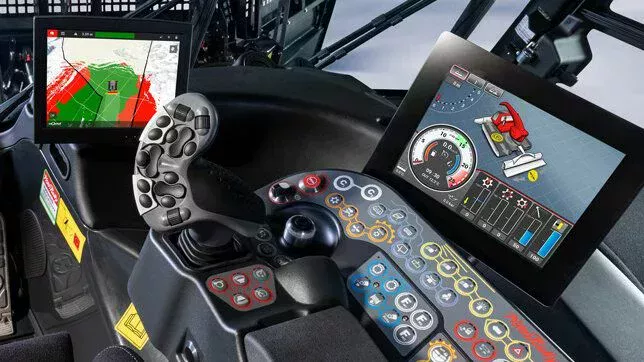

The innovative cockpit of the PistenBully 400
The joystick in the cockpit of PistenBully 400

Joystick

Ergonomic and free movement in all directions. For intuitive control. The joystick's four axes permit four simultaneous movements of the front blade. Proportional control of the attachments. All one-handed. Four operator profiles can be called up individually.

Control unit of PistenBully 400

Control unit

For a quiet hand and safe handling in any driving situation: driver's seat, armrest and joystick are permanently connected to each other. One ergonomic and comfortable unit. Individually configurable for the operator. Enabling fatigue-free working, even when tackling bumpy driving in difficult terrain.

The high-quality interior lining in the cockpit of the PistenBully 400

Interior

High-end and low-maintenance interior lining. New floorpan. Both with innovative heat insulation and significantly improved noise protection, which makes the PistenBully 400 quieter than ever. The optimized ventilation in the center console provides a perfect cab climate – on request with comfort automatic climate control system for the first time. In addition, there is plenty of space and freedom of movement.

SNOWsat iX

SNOWsat

SNOWsat snow depth measurement provides a precise overview of the snow situation in the ski area. Only if you know the snow depths everywhere on the slopes can you move snow in a targeted manner. The result: perfect slopes for your guests every day, increased productivity, enormous cost savings, careful use of resources and increased work and operational safety.


But: SNOWsat is more than just snow depth measurement. Discover all SNOWsat solutions!

iTerminal in the cockpit of PistenBully 400

iTerminal

The touch display is intuitive and easy to operate. All active parts of the vehicle are color-highlighted. With a fast navigation option using symbols.

Stick steering of PistenBully 400

Stick steering

Drive control stick control for direct handling and steering. The power potentiometer controls the driving speed.

Alternative semi-circular steering wheel
Alternative

Semi-circular steering wheel

As an alternative option to the stick steering: The semi-circular steering wheel can be steplessly adjusted in the horizontal level and is easy to grip in your hand. The operator steers the PistenBully without any difficulty and finds the most important functions directly in the steering.

Engine of PistenBully 400
Larger tank volume

Even though fuel consumption is lower, it has considerably more power and torque than the predecessor model. Longer range thanks to larger tank volume (360 L) for efficient and economical operation.

Diesel particulate filter

Environmentally friendly fleet: Equipped with a clean 6-cylinder engine with 435 metric HP, including a diesel particulate filter, the PistenBully 400 also meets EU Stage V / EPA Tier 4 final.

Compact engine

Compact engine with simple design. Fewer complicated components and improved access. Straightforward and easy to service; less prone to malfunction and faults.

Thanks to higher torque and better power-to-weight ratio, the PistenBully 400 is the most powerful vehicle in its class with the best pushing power and gradability!

Stronger power transmission

Thanks to larger drive pumps and an optimized gear ratio, the speed and tractive force increase significantly.

A freshly groomed slope.

Assistance systems

Assistance systems of PistenBully 400: AutoTracer
MAXIMUM TRACKING STABILITY

AutoTracer

Rear implement carrier with intelligent, active steering assistance. Possible in both fixed position (locked) and floating position (released). Automatic steering support while cornering. Automatic counter-steering on cross-slopes. For automatic support and reduction of the driver's workload!

Assistance systems of PistenBully 400: AutoWinch
OPTIMAL PULLING FORCE

AutoWinch

Intelligent winch with automatic tension control. Activated at the control panel. Matches driving speed and winch rope speed. If there is a deviation, for instance, because of slip, tractive force is increased. Manual override if necessary. Less wear and tear on the winch rope, less strain on the operator.

Assistenzsystem des PistenBully 800: Schneetiefenmessunng
RESOURCE-CONSERVING SNOW MANAGEMENT

SNOWsat snow depth measurement

The high-precision snow depth measurement helps the operator detect slope areas with small amounts of snow and identify snow reserves – under, in front of and on both sides of the vehicle. This way snow can be pushed with precision and maximum quality can be achieved for the slope structure. Increases productivity while conserving resources and helping to preserve the environment.

Technical data

Engine
TypeCummins L 9
Number of cylinders6
Displacement8.90 l / 8,900 cc
Power in accordance with320 kW / 435 metric hp
Exhaust gas standardTier 4f and EU Stage V
max. torque1,846 Nm @ 1,500 rpm
Tank capacity360 l
DEF (AdBlue®) tank36 l
Fuel consumptionfrom 19.5 l/h
Traction drive pump145 cc
Propulsion drive107 cc
Tiller drive pump105 cc
Tiller drive2 × 63 cc
Winch assembly
Pulling force stepless, automatic40 kN / 4,080 kp
Technische Daten des PistenBully 400
Engine
TypeCummins L 9
Number of cylinders6
Displacement8.90 l / 8,900 cc
Power in accordance with320 kW / 429 hp
Exhaust gas standardTier 4f and EU Stage V
max. torque1,846 Nm @ 1,500 rpm
Tank capacity95.1 gal
DEF (AdBlue®) tank9.51 gal
Fuel consumptionfrom 5 gal/h
Traction drive pump145 cc
Propulsion drive107 cc
Tiller drive pump105 cc
Tiller drive2 × 63 cc
Winch assembly
Pulling force stepless, automatic40 kN / 4,080 kp

Winch 4.0+

360° unlimited. The new active winch with AutoWinch.



PistenBully 400 Winde
PistenBully 400 im Einsatz
Winch features


AutoWinch
Rope speed exactly matched to driving speed by means of automatic tractive force control. Manual override if necessary. Less wear and tear on the winch rope, less strain on the operator.

Active winch, maximum tracking stability
Electronically and proportionally activated capstan winch pump. Enables automatic co-steering by the winch. Optimum steering properties even in difficult slope conditions and with a lateral tensile load.

Constant tractive force, new capstan winch
The capstan drive ensures a consistently high tractive force and rope speed regardless of the remaining rope length on the reel. The advantage: more safety, especially at high driving speeds.

PistenBully 400 in the park
After we tested the new ParkPro for 800 hours last winter, I can say that the dynamic control with the new joystick and the combination of ParkPro and a winch are in perfect accord with the spirit of our time!
Markus Deutinger, Department Head and Head Groomer at AbsolutparkFlachauwinkel, Austria
Equipment

Gear box, chassis & wheels

  • Optimized splitter box, less noise and vibration
  • Only trailing axles for improved driving characteristics
  • Optimized main frame for improved accessibility to the drive components
  • Tensioning axle with reinforced rocker levers and wheels supported by larger tapered roller bearings
  • Magnum sprocket
  • Solid rubber wheels
  • Functional fenders to prevent throwing snow

Hydraulics and auxiliary hydraulics

  • Electro-hydraulic brake
  • New pump splitter gearbox tilts the drive pumps outward by 5° for optimized accessibility
  • Specific output 40% higher than predecessor model
  • Optimized control for higher efficiency
  • High pressure filter
  • Calibrated valves with identical response characteristics in all vehicles
  • Best-in-class speed and response
  • Individually adjustable valve characteristics
  • All functions can be controlled proportionally and independently
  • Identical parts (e.g. proportional valves and solenoids)
  • Charge pressure reduction

Cabine

  • Comfort driver's seat
  • Harness
  • DAB + radio
  • Bluetooth handsfree set
  • Connections: USB and audio in
  • Premium sound package with Alpine subwoofer and amplifier
  • Rear camera color
  • Stick control with power potentiometer for temporary rise of engine speed
  • Inclination sensor

LED-Lighting

  • LED headlights
  • LED SideFinder lights integrated into the carrier frame
  • LED TillerFlap lights
  • LED BladeFlap lights
  • LED turn indicators and rear lights integrated into the carrier frame

Electronics and batteries

  • Straightforward onboard diagnosis with plain-text fault readout
  • Automatic temperature compensation with cold-running protection of the components
  • Easy to maintain thanks to reduced variety of parts

Technology and engine

  • Trailer hitch
  • High-pressure connection for hydraulic front attachments
  • Hydraulic oil preheating

Cab and comfort

  • Auxiliary heating
  • Automatic air conditioning
  • Central locking system
