First choice for professionals
Get in, select personalized settings, drive off – this is now possible with all PistenBully vehicles, in a completely identical manner. Because the new PistenBully 400 completes the family: An entire generation with identical operating comfort and convenience, with the cleanest exhaust technology and the most attractive performance – and all this in the familiar quality.
What remains of the old PistenBully 400 is its perfect balance of force and weight and its outstanding maneuverability thanks to its compact dimensions. What is new and significantly better is the clean engine, the comfort cockpit and the intuitive operation that is also part of the PistenBully 100 and 600 vehicles. The assistance systems are also new, which makes driving even easier. Completely prepared for SNOWsat.
Building parks without the PistenBully 400 ParkPro has been unthinkable for quite a while. The 400 ParkPro is considered the professional tool for more creativity and perfection in the snow park. A highlight of the new generation is the completely overhauled auxiliary equipment – the ProBlade and, above all, the ProFlexTiller.
Uniform operating concept of the current generation also in the ParkPro vehicles. The joystick makes it possible to build parks with control that is intuitive but also customized. In the ParkPro, the buttons can be assigned as you please – both the function buttons and the joystick. Four operator profiles can be called up individually.
Thanks to the maximum flexibility and the enhanced movement radius, there are hardly any limits to the design of the park. The new system for measuring lengths and distances provides support at an accuracy of one meter.
Flexible ProBlade and ProFlexTiller for extremely precise shaping and forming for ideal results. These new attachments offer more leeway for creative work and make even more unusual shapes possible. The grooming strip on the ProBlade draws the typical cord pattern even in reverse motion.
The high-performance and extremely wear-resistant track cleats of the 6-belt KombiPlus track and the optimized belt pitch are synonymous with high resistance and optimum force transmission and thus has the best pushing performance. The greater pitch provides better gradability.
The park specialist – the PistenBully 400 in its ParkPro model variant: Developed in cooperation with the best operators and shapers in the world. Adjusted to the luxury of the new generation. Equipped with everything you could want for grooming snow parks.
The ProBlade makes edges even sharper. Its distinct side edges, corners and side cutter shape kickers in even greater detail. The new OneTouchStraight function sets the blade straight without limiting the movement of the side wings forwards or backwards.
Hydraulic control for the easy transport of rails, fun boxes and other park accessories. One person can do this even unassisted. Ideal for competitions.
With ParkPro kinematics and reinforced cylinders. No adapter frame necessary.
Control of the rear carrier via joystick for intuitive operation when building a park and for more comfort when coupling the tiller.
Faster response characteristics with direct and proportional control of all functions.
The ProFlexTiller, with its expanded flex angles, offers a freeze function that can record the existing ground contour in a floating position and lock it hydraulically afterwards. The new hydraulic system also allows for approaching any position, including its end positions, hydraulically.
Chassis and chains
Fully overhauled – the new main frame, the stronger tensioning axle and larger drive pumps.
The new 6-band CombiPlus chain is extremely durable and stable. It conquers every slope and is easy to steer. Stable and capable of climbing!
The new implement carrier is specially optimized for its main area of application and includes vibration compensation and damping as standard equipment. And it allows for enormous movement radii in park building in particular.
ProMount swap system
The ProMount swap system offers the optimum kinematics for even greater movement radii in park building. Thanks to strong cylinders and the high-performance proportional hydraulics, all requirements in the park can be met with precision, speed and power.

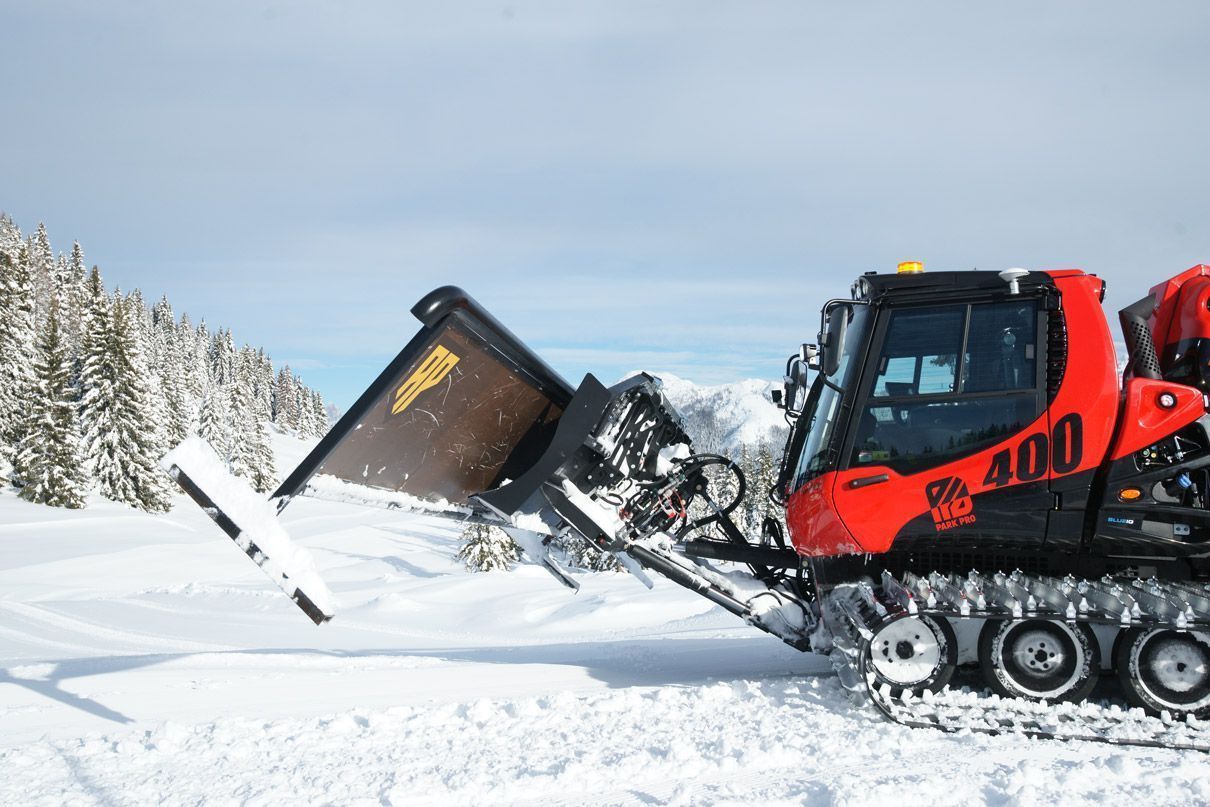

ProBlade
Flexibility is the advantage of the new ProBlade. Integrated hydraulic transport tines are the ideal solution for moving park equipment. The sharp side cutters shape kickers with ideal cutting edges. The OneTouchStraight function sets the blade straight at the push of a button. The wings can nevertheless be tilted backwards for better snow transport.
Driver's cab
The operator is in focus. Our cab achieves this principle with comfort, ergonomics and intuitive operation. Large windows, a perfect arrangement and ideal lighting provide a good overview, especially at night. Optimized ventilation and a sun sensor for automatic heating and air conditioning regulation ensure an optimum cab climate. And lest we forget – there are various storage options and beverage holders!
The ProFlexTiller, with its enlarged flex angle and V and A positions, provides optimum adaptation to the properties of the slope. The Freeze function does not just allow operators to approach any position but also to map each and every contour.
V position
A position
Interior
High-end and low-maintenance interior lining. New floorpan. Both with innovative heat insulation and significantly improved noise protection, which makes the PistenBully 400 quieter than ever. The optimized ventilation in the center console provides a perfect cab climate – on request with comfort automatic climate control system for the first time. In addition, there is plenty of space and freedom of movement.
Control unit
For a quiet hand and safe handling in any driving situation: driver's seat, armrest and joystick are permanently connected to each other. One ergonomic and comfortable unit. Individually configurable for the operator. Enabling fatigue-free working, even when tackling bumpy driving in difficult terrain.
Joystick
Ergonomic and free movement in all directions. For intuitive control. The joystick's four axes permit four simultaneous movements of the front blade. Proportional control of the attachments. All one-handed. Four operator profiles can be called up individually.
SNOWsat
SNOWsat snow depth measurement provides a precise overview of the snow situation in the ski area. Only if you know the snow depths everywhere on the slopes can you move snow in a targeted manner. The result: perfect slopes for your guests every day, increased productivity, enormous cost savings, careful use of resources and increased work and operational safety.
But: SNOWsat is more than just snow depth measurement. Discover all SNOWsat solutions!
iTerminal
The touch display is intuitive and easy to operate. All active parts of the vehicle are color-highlighted. With a fast navigation option using symbols.
Stick steering
Drive control stick control for direct handling and steering. The power potentiometer controls the driving speed.
Semi-circular steering wheel
As an alternative option to the stick steering: The semi-circular steering wheel can be steplessly adjusted in the horizontal level and is easy to grip in your hand. The operator steers the PistenBully without any difficulty and finds the most important functions directly in the steering.
Compact engine with simple design. Fewer complicated components and improved access. Straightforward and easy to service; less prone to malfunction and faults.
Thanks to higher torque and better power-to-weight ratio, the PistenBully 400 is the most powerful vehicle in its class with the best pushing power and gradability!
Environmentally friendly fleet: Equipped with a clean 6-cylinder engine with 435 metric HP, including a diesel particulate filter, the PistenBully 400 also meets EU Stage V / EPA Tier 4 final.
Even though fuel consumption is lower, it has considerably more power and torque than the predecessor model. Longer range thanks to larger tank volume (360 L) for efficient and economical operation.
Thanks to larger drive pumps and an optimized gear ratio, the speed and tractive force increase significantly.
Assistance systems
AutoTracer
Rear implement carrier with intelligent, active steering assistance. Possible in both fixed position (locked) and floating position (released). Automatic steering support while cornering. Automatic counter-steering on cross-slopes. For automatic support and reduction of the driver's workload!
SNOWsat snow depth measurement
The high-precision snow depth measurement helps the operator detect slope areas with small amounts of snow and identify snow reserves – under, in front of and on both sides of the vehicle. This way snow can be pushed with precision and maximum quality can be achieved for the slope structure. Increases productivity while conserving resources and helping to preserve the environment.

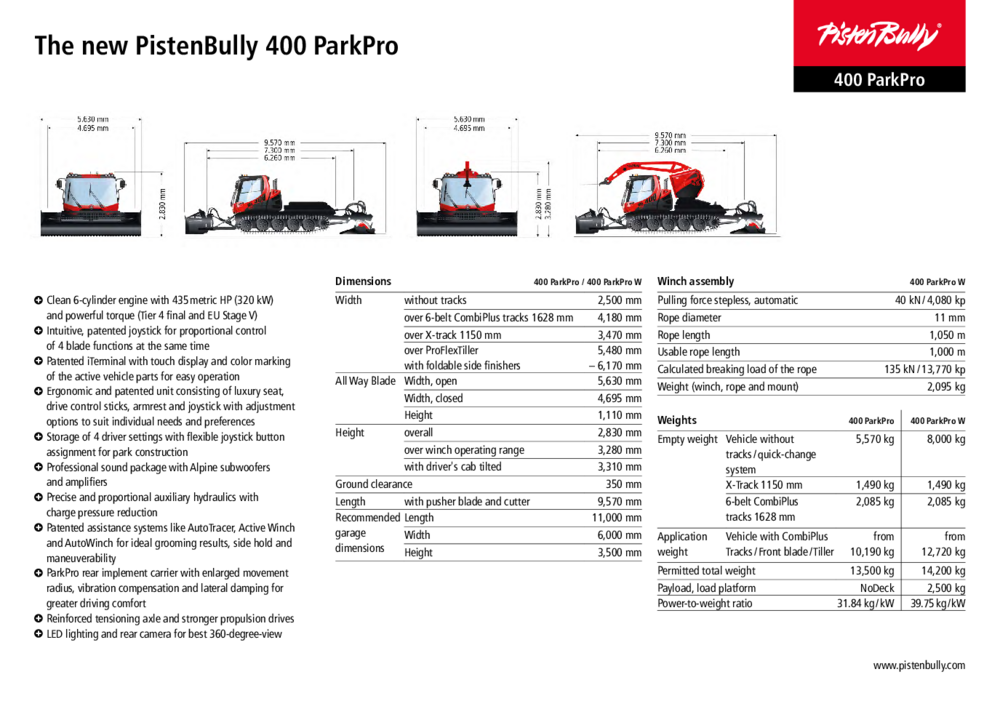

Technical data
| Engine | |
|---|---|
| Type | Cummins L 9 |
| Number of cylinders | 6 |
| Displacement | 8.90 l / 8,900 cc |
| Power in accordance with | 320 kW / 435 metric hp |
| Exhaust gas standard | Tier 4f and EU Stage V |
| max. torque | 1,846 Nm @ 1,500 rpm |
| Tank capacity | 350 l |
| DEF (AdBlue®) tank | 36 l |
| Fuel consumption | from 19.5 l/h |
| Traction drive pump | 145 cc |
| Propulsion drive | 107 cc |
| Tiller drive pump | 105 cc |
| Tiller drive | 2 × 63 cc |
| Engine | |
|---|---|
| Type | Cummins L 9 |
| Number of cylinders | 6 |
| Displacement | 8.90 l / 8,900 cc |
| Power in accordance with | 320 kW / 429 hp |
| Exhaust gas standard | Tier 4f and EU Stage V |
| max. torque | 1,846 Nm @ 1,500 rpm |
| Tank capacity | 92.4 gal |
| DEF (AdBlue®) tank | 9.51 gal |
| Fuel consumption | from 5 gal/h |
| Traction drive pump | 145 cc |
| Propulsion drive | 107 cc |
| Tiller drive pump | 105 cc |
| Tiller drive | 2 × 63 cc |
“The parks evolve extremely quickly, and with the help of these vehicles, you can follow the trend and even be ahead of it.
Gear box, chassis & wheels
- Optimized splitter box, less noise and vibration
- Only trailing axles for improved driving characteristics
- Optimized main frame for improved accessibility to the drive components
- Tensioning axle with reinforced rocker levers and wheels supported by larger tapered roller bearings
- Magnum sprocket
- Functional fenders to prevent throwing snow
- NoDeck for optimum visibility on chains and tiller
Hydraulics and auxiliary hydraulics
- Electro-hydraulic brake
- New pump splitter gearbox tilts the drive pumps outward by 5° for optimized accessibility
- Specific output 40% higher than predecessor model
- Optimized control for higher efficiency
- High pressure filter
- Calibrated valves with identical response characteristics in all vehicles
- Best-in-class speed and response
- Individually adjustable valve characteristics
- All functions can be controlled proportionally and independently
- Identical parts (e.g. proportional valves and solenoids)
- Charge pressure reduction
Cabine
- Comfort driver's seat
- DAB + radio
- Bluetooth handsfree set
- Connections: USB and audio in
- Harness
- Premium sound package with Alpine subwoofer and amplifier
- Rear camera color
- Stick control with power potentiometer for temporary rise of engine speed
- Inclination sensor
LED-Lighting
- LED headlights
- LED SideFinder lights integrated into the carrier frame
- LED TillerFlap lights
- LED BladeFlap lights
- LED turn indicators and rear lights integrated into the carrier frame
Electronics and batteries
- Straightforward onboard diagnosis with plain-text fault readout
- Automatic temperature compensation with cold-running protection of the components
- Easy to maintain thanks to reduced variety of parts
Technology and engine
- Trailer hitch
- High-pressure connection for hydraulic front attachments
- Hydraulic oil preheating
- Solid rubber wheels
Cab and comfort
- Auxiliary heating
- Automatic air conditioning
- Central locking system
Attachments
