Workhorse for pushing and climbing
Get in, select personalized settings, drive off – this is now possible with all PistenBully vehicles, in a completely identical manner. Because the new PistenBully 400 completes the family: An entire generation with identical operating comfort and convenience, with the cleanest exhaust technology and the most attractive performance – and all this in the familiar quality.
What remains of the old PistenBully 400 is its perfect balance of force and weight and its outstanding maneuverability thanks to its compact dimensions. What is new and significantly better is the clean engine, the comfort cockpit and the intuitive operation that is also part of the PistenBully 100 and 600 vehicles. The assistance systems are also new, which makes driving even easier. Completely prepared for SNOWsat.

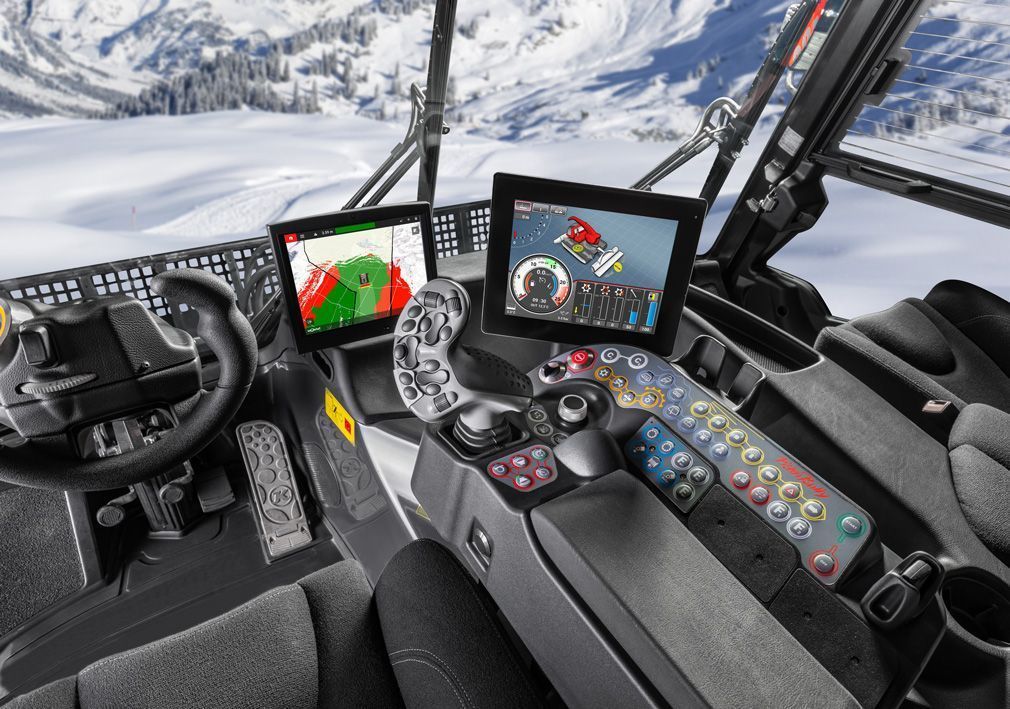

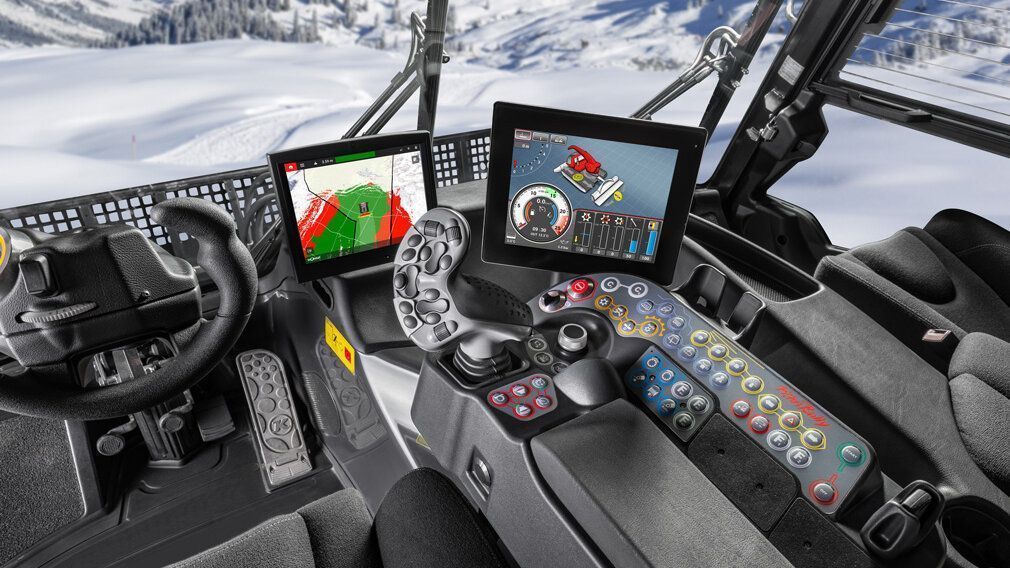

Uniform operating concept in all models of the current generation. For all 4 models of the PistenBully 400. Joystick for the intuitive control of all four axes. Intuitive iTerminal with touchscreen. Four operator profiles can be called up individually. Driver's seat, steering wheel and armrest form a single ergonomic unit.
Assistance systems lessen the driver's workload with smart automatic functions. For simple handling, easy work and improved slope quality.
The high-performance and extremely wear-resistant track cleats of the 6-belt KombiPlus track and the optimized belt pitch are synonymous with high resistance and optimum force transmission and thus has the best pushing performance. The greater pitch provides better gradability.
EPA 4 final or EU emissions level V. And, in any case, the best emissions values. Ready for HVO. A larger tank volume combined with a lower fuel consumption results in a longer range. A sufficient reserve and a feeling of security even during long shifts!
“"The cabin comfort of the new 400 has taken a great leap, so there is hardly any difference now between the 400 and 600 and you can enjoy the same comfort
Chassis and chains
Fully overhauled – the new main frame, the stronger tensioning axle and larger drive pumps.
The new 6-band CombiPlus chain is extremely durable and stable. It conquers every slope and is easy to steer. Stable and capable of climbing!
The new implement carrier is specially optimized for its main area of application and includes vibration compensation and damping as standard equipment. And it allows for enormous movement radii in park building in particular.
Quick-change system
Tried and tested in the big brother, the PistenBully 600, the quick-change system with reduced hose routing offers precise and subtle activation of the functions.
AllWayBlade
At a working width of over 5.2 m and with the option of a snowgun holder, the AllWayBlade delivers exactly what is expected of it: lightweight construction, stability, flexibility and precise preliminary grooming for an ideal slope.
Driver's cab
The operator is in focus. Our cab achieves this principle with comfort, ergonomics and intuitive operation. Large windows, a perfect arrangement and ideal lighting provide a good overview, especially at night. Optimized ventilation and a sun sensor for automatic heating and air conditioning regulation ensure an optimum cab climate. And lest we forget – there are various storage options and beverage holders!
Interior
High-end and low-maintenance interior lining. New floorpan. Both with innovative heat insulation and significantly improved noise protection, which makes the PistenBully 400 quieter than ever. The optimized ventilation in the center console provides a perfect cab climate – on request with comfort automatic climate control system for the first time. In addition, there is plenty of space and freedom of movement.
Joystick
Ergonomic and free movement in all directions. For intuitive control. The joystick's four axes permit four simultaneous movements of the front blade. Proportional control of the attachments. All one-handed. Four operator profiles can be called up individually.
Control unit
For a quiet hand and safe handling in any driving situation: driver's seat, armrest and joystick are permanently connected to each other. One ergonomic and comfortable unit. Individually configurable for the operator. Enabling fatigue-free working, even when tackling bumpy driving in difficult terrain.
SNOWsat
SNOWsat snow depth measurement provides a precise overview of the snow situation in the ski area. Only if you know the snow depths everywhere on the slopes can you move snow in a targeted manner. The result: perfect slopes for your guests every day, increased productivity, enormous cost savings, careful use of resources and increased work and operational safety.
But: SNOWsat is more than just snow depth measurement. Discover all SNOWsat solutions!
iTerminal
The touch display is intuitive and easy to operate. All active parts of the vehicle are color-highlighted. With a fast navigation option using symbols.

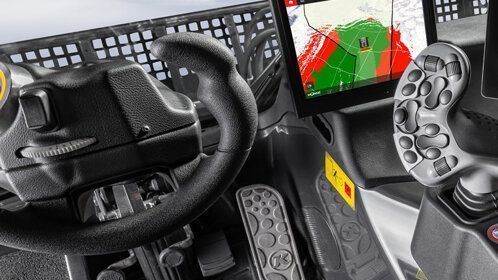

Semi-circular steering wheel
Precise steering: the semi-circular steering wheel can be steplessly adjusted in the horizontal level and is easy to grip in your hand. The operator steers the PistenBully without any difficulty and finds the most important functions directly in the steering.
Stick steering
As an alternative option to the steering wheel: drive control stick control for direct handling and steering. The power potentiometer controls the driving speed.
Compact engine with simple design. Fewer complicated components and improved access. Straightforward and easy to service; less prone to malfunction and faults.
Thanks to higher torque and better power-to-weight ratio, the PB 400 is the most powerful vehicle in its class with the best pushing power and gradability!
Environmentally friendly fleet: Equipped with a clean 6-cylinder engine with 435 metric HP, including a diesel particulate filter, the PistenBully 400 also meets EU Stage V / EPA Tier 4 final.
Even though fuel consumption is lower, it has considerably more power and torque than the predecessor model. Longer range thanks to larger tank volume (360 L) for efficient and economical operation.
Thanks to larger drive pumps and an optimized gear ratio, the speed and tractive force increase significantly.
Assistance systems
AutoTracer
Rear implement carrier with intelligent, active steering assistance. Possible in both fixed position (locked) and floating position (released). Automatic steering support while cornering. Automatic counter-steering on cross-slopes. For automatic support and reduction of the driver's workload!
SNOWsat snow depth measurement
The high-precision snow depth measurement helps the operator detect slope areas with small amounts of snow and identify snow reserves – under, in front of and on both sides of the vehicle. This way snow can be pushed with precision and maximum quality can be achieved for the slope structure. Increases productivity while conserving resources and helping to preserve the environment.

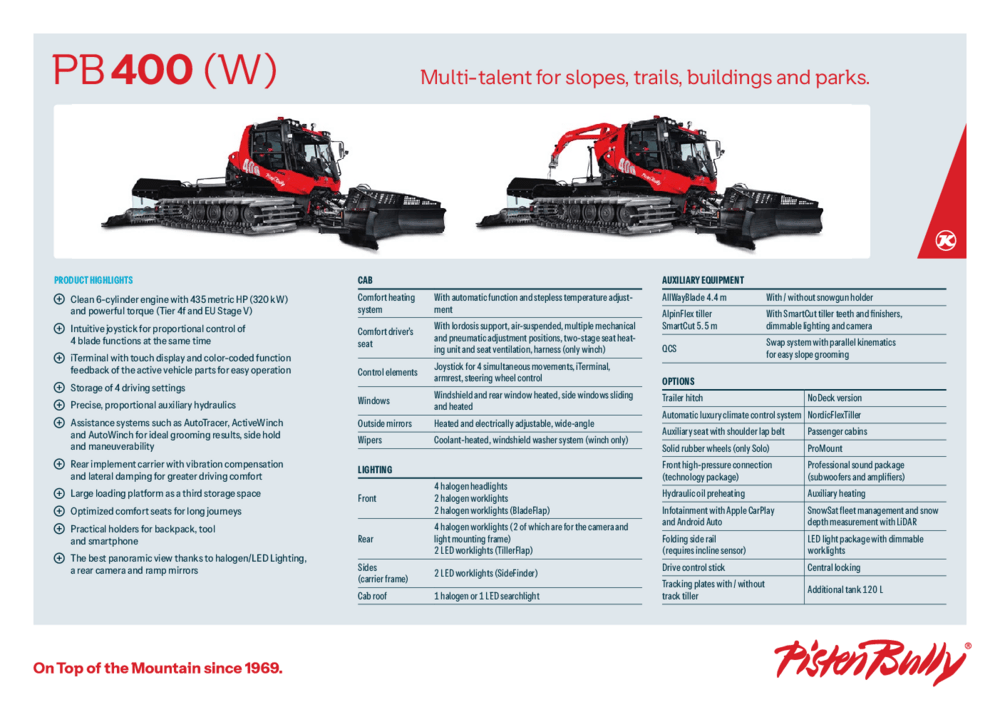

Technical data
| Engine | |
|---|---|
| Type | Cummins L 9 |
| Number of cylinders | 6 |
| Displacement | 8.90 l / 8,900 cc |
| Power in accordance with | 320 kW / 435 metric hp |
| Exhaust gas standard | Tier 4f and EU Stage V |
| max. torque | 1,846 Nm @ 1,500 rpm |
| Tank capacity | 350 l |
| DEF (AdBlue®) tank | 36 l |
| Fuel consumption | from 19.5 l/h |
| Traction drive pump | 145 cc |
| Propulsion drive | 107 cc |
| Tiller drive pump | 105 cc |
| Tiller drive | 2 × 63 cc |
| Engine | |
|---|---|
| Type | Cummins L 9 |
| Number of cylinders | 6 |
| Displacement | 8.90 l / 8,900 cc |
| Power in accordance with | 320 kW / 429 hp |
| Exhaust gas standard | Tier 4f and EU Stage V |
| max. torque | 1,846 Nm @ 1,500 rpm |
| Tank capacity | 92.4 gal |
| DEF (AdBlue®) tank | 9.5 gal |
| Fuel consumption | from 5 gal/h |
| Traction drive pump | 145 cc |
| Propulsion drive | 107 cc |
| Tiller drive pump | 105 cc |
| Tiller drive | 2 × 63 cc |
Gear box, chassis & wheels
- Optimized splitter box, less noise and vibration
- Only trailing axles for improved driving characteristics
- Optimized main frame for improved accessibility to the drive components
- Tensioning axle with reinforced rocker levers and wheels supported by larger tapered roller bearings
- Magnum sprocket
- Functional fenders to prevent throwing snow
Hydraulics and auxiliary hydraulics
- Electro-hydraulic brake
- New pump splitter gearbox tilts the drive pumps outward by 5° for optimized accessibility
- Specific output 40% higher than predecessor model
- Optimized control for higher efficiency
- High pressure filter
- Calibrated valves with identical response characteristics in all vehicles
- Best-in-class speed and response
- Individually adjustable valve characteristics
- All functions can be controlled proportionally and independently
- Identical parts (e.g. proportional valves and solenoids)
- Charge pressure reduction
Cab
- Rear camera color
- DAB + radio
- Bluetooth handsfree set
- Connections: USB and audio in
Lighting
- Halogen headlights
- LED SideFinder lights integrated into the carrier frame
- LED TillerFlap lights
- LED BladeFlap lights
- LED turn indicators and rear lights integrated into the carrier frame
Electronics and batteries
- Straightforward onboard diagnosis with plain-text fault readout
- Automatic temperature compensation with cold-running protection of the components
- Easy to maintain thanks to reduced variety of parts
Technology and engine
- Trailer hitch
- High-pressure connection for hydraulic front attachments
- Stick control with power potentiometer for temporary rise of engine speed
- Hydraulic oil preheating
- NoDeck for optimum visibility on chains and tiller
- Preparation for VarioTrackDesigner (track tiller)
Cab and comfort
- Harness
- Auxiliary heating
- Automatic air conditioning
- Premium sound package with Alpine subwoofer and amplifier
- Optional LED-light package
- Central locking system
Attachments
As a full-service provider, Kässbohrer not only supplies the technology, but also the appropriate training and software.
