600 Polar ParkPro

PistenBully 600 Polar parkpro

The flagship for the most demanding tasks in the park

It is the largest park construction professional - multifunctional with standardized park operation. Specially developed to increase performance and efficiency in the construction and maintenance of large snow parks in particular. The impressive pushing performance of the PistenBully 600 Polar ParkPro comes from the optimum power-to-weight ratio and offers unprecedented possibilities for the construction and maintenance of all types of parks. The laterally rotating driver's seat and the NoDeck allow perfect visibility when pushing and shaping. The characteristic ParkPro attachments ensure maximum movement radii and creativity in the park.

The hydraulic Flex/Freeze function of the ProFlex tiller draws precise contours. The extended movement radii of the ProMount with the ProBlade enable flexible use for a wide range of parking requirements. Especially thanks to the standard OneTouchStraight function, transport tines, SideCutters and backblading profile.

Ein Funpark, der mithilfe eines PistenBully 600 Park konstruiert wurde.
for the most demanding
tasks in the park

The park specialist – the PistenBully 600 Polar in its ParkPro model variant: Developed in cooperation with the best operators and shapers in the world.
Adjusted to the luxury of the new generation. Equipped with everything you could want for grooming snow parks.



ProBlade

The ProBlade makes edges even sharper. Its distinct side edges, corners and side cutter shape kickers in even greater detail. The new OneTouchStraight function sets the blade straight without limiting the movement of the side wings forwards or backwards.

Transport tines

Hydraulic control for the easy transport of rails, fun boxes and other park accessories. One person can do this even unassisted. Ideal for competitions.

ProMount swap system

With ParkPro kinematics and reinforced cylinders. No adapter frame necessary.  For high mobility and more flexibility of the attachments. All devices can be operated simultaneously. Perfect for shaping and reshaping kickers and ramps, jumps and pipes.

Park button

Control of the rear carrier via joystick for intuitive operation when building a park and for more comfort when coupling the tiller.

Auxiliary hydraulics

Faster response characteristics with direct and proportional control of all functions.

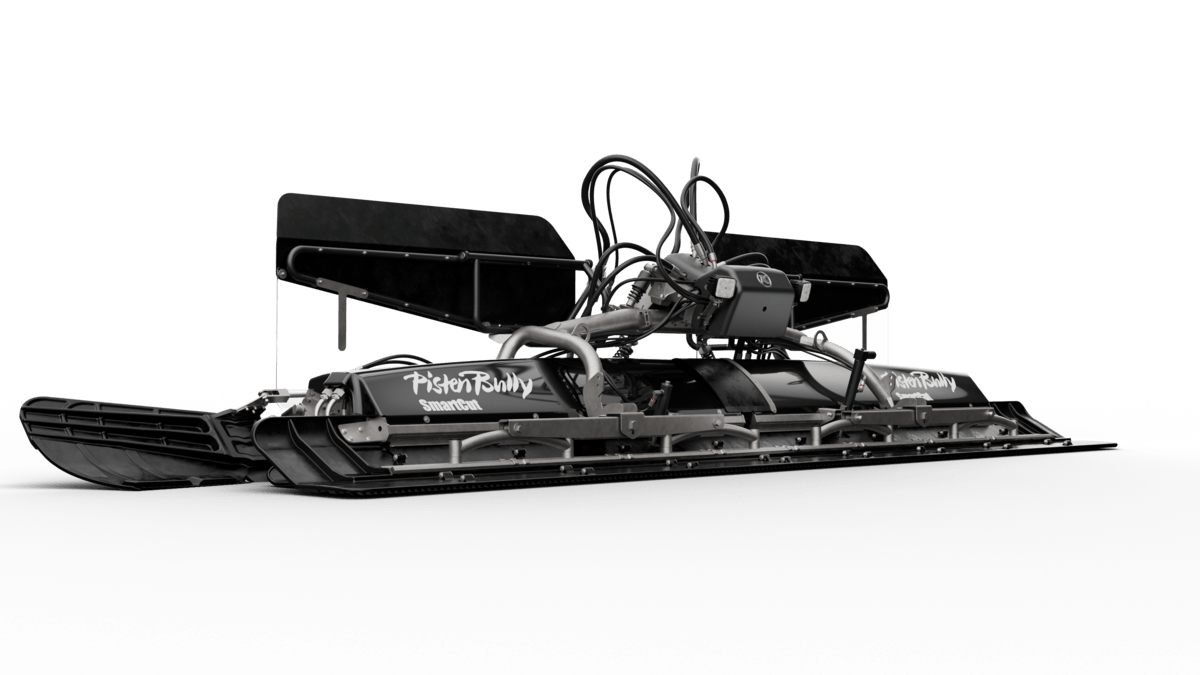

ProFlexTiller

The ProFlexTiller, with its expanded flex angles, offers a freeze function that can record the existing ground contour in a floating position and lock it hydraulically afterwards. The new hydraulic system also allows for approaching any position, including its end positions, hydraulically.

Showroom
Das Fahrwerk des PistenBully 400

Chassis and chains

Fully overhauled – the new main frame, the stronger tensioning axle and larger drive pumps.

The new 6-band CombiPlus chain is extremely durable and stable. It conquers every slope and is easy to steer. Stable and capable of climbing!

Implement carrier

The new implement carrier is specially optimized for its main area of application and includes vibration compensation and damping as standard equipment. And it allows for enormous movement radii in park building in particular.

Das Wechselsystem des PistenBully 400

ProMount swap system

The ProMount swap system offers the optimum kinematics for even greater movement radii in park building. Thanks to strong cylinders and the high-performance proportional hydraulics, all requirements in the park can be met with precision, speed and power.

The characteristic ParkPro attachments offer maximum movement radii and hydraulic flex/freeze functions for precise contours.

Das ProBlade des PistenBully 400

ProBlade

Flexibility is the advantage of the new ProBlade. Integrated hydraulic transport tines are the ideal solution for moving park equipment. The sharp side cutters shape kickers with ideal cutting edges. The OneTouchStraight function sets the blade straight at the push of a button. The wings can nevertheless be tilted backwards for better snow transport.

Die Fahrerkabine des PistenBully 400

Driver's cab

The operator is in focus. Our cab achieves this principle with comfort, ergonomics and intuitive operation. Large windows, a perfect arrangement and ideal lighting provide a good overview, especially at night. Optimized ventilation and a sun sensor for automatic heating and air conditioning regulation ensure an optimum cab climate. And lest we forget – there are various storage options and beverage holders!

ProFlexTiller

The ProFlexTiller, with its enlarged flex angle and V and A positions, provides optimum adaptation to the properties of the slope. The Freeze function does not just allow operators to approach any position but also to map each and every contour.

V position

A position

Das innovative Cockpit des PistenBully 400
Der Joystick im Cockpit des PistenBully 400

Joystick

Ergonomic and free movement in all directions. For intuitive control. The joystick's four axes permit four simultaneous movements of the front blade. Proportional control of the attachments. All one-handed. Four operator profiles can be called up individually.

Die Bedieneinheit des Cockpits des PistenBully 400

Control unit

For a quiet hand and safe handling in any driving situation: driver's seat, armrest and joystick are permanently connected to each other. One ergonomic and comfortable unit. Individually configurable for the operator. Enabling fatigue-free working, even when tackling bumpy driving in difficult terrain.

Die hochwertige Innenverkleidung im Cockpit des PistenBully 400

Interior

High-end and low-maintenance interior lining. New floorpan. Both with innovative heat insulation and significantly improved noise protection, which makes the PistenBully 600 Polar ParkPro quieter than ever. The optimized ventilation in the center console provides a perfect cab climate – on request with comfort automatic climate control system for the first time. In addition, there is plenty of space and freedom of movement.

SNOWsat

SNOWsat

SNOWsat snow depth measurement provides a precise overview of the snow situation in the ski area. Only if you know the snow depths everywhere on the slopes can you move snow in a targeted manner. The result: perfect slopes for your guests every day, increased productivity, enormous cost savings, careful use of resources and increased work and operational safety.


But: SNOWsat is more than just snow depth measurement. Discover all SNOWsat solutions!

Das iTerminal im Cockpit des PistenBully 400

iTerminal

The touch display is intuitive and easy to operate. All active parts of the vehicle are color-highlighted. With a fast navigation option using symbols.

Stickssteuerung des PistenBully 400

Stick steering

Drive control stick control for direct handling and steering. The power potentiometer controls the driving speed.

Alternatives Halblenkrad
Alternative

Semi-circular steering wheel

As an alternative option to the stick steering: The semi-circular steering wheel can be steplessly adjusted in the horizontal level and is easy to grip in your hand. The operator steers the PistenBully without any difficulty and finds the most important functions directly in the steering.

Der kompakte Motor des PistenBully 600 Polar Park.
Der Dieselpartikelfilter des PistenBully 600 Polar Park

Diesel particulate filter

Environmentally friendly pioneer: With the clean 6-cylinder engine with 520 hp including diesel particulate filter, the PistenBully 600 Polar ParkPro meets EU Stage V.

Larger tank capacity of the PistenBully 600 Polar ParkPro.

Larger tank volume

Significantly more power and torque than its predecessor despite lower fuel consumption. Long range thanks to larger tank volume (300 l) for efficient and economical operation.

Der kompakte Motor mit einfachem Aufbau des PistenBully 600 Polar Park

Compact engine

Compact engine with simple design. Fewer complex components and improved access. Thus clear, easy to maintain and less prone to faults and errors.

Eine frisch präparierte Piste.

Assistance systems

Assistenzsystem des PistenBully 600 Polar Park: AutoTracer
MAXIMUM TRACKING STABILITY

AutoTracer

Rear implement carrier with intelligent, active steering assistance. Possible in both fixed position (locked) and floating position (released). Automatic steering support while cornering. Automatic counter-steering on cross-slopes. For automatic support and reduction of the driver's workload!

Assistenzsystem des PistenBully 600 Polar Park: SlopeTracer
IDEAL GROUND FOLLOWING

SlopeTracer

Intelligent control of the rear implement carrier. Can be used like a parallel tool carrier via software. Ensures perfect ground adaptation of the tiller in hilly terrain and automatically adjusts the milling depth. The patented SlopeTracer simplifies operation and enables very large movement radii.

Assistenzsystem des PistenBully 800: Schneetiefenmessunng
RESOURCE-CONSERVING SNOW MANAGEMENT

SNOWsat
snow depth measurement

The high-precision snow depth measurement helps the operator detect slope areas with small amounts of snow and identify snow reserves – under, in front of and on both sides of the vehicle. This way snow can be pushed with precision and maximum quality can be achieved for the slope structure. Increases productivity while conserving resources and helping to preserve the environment.

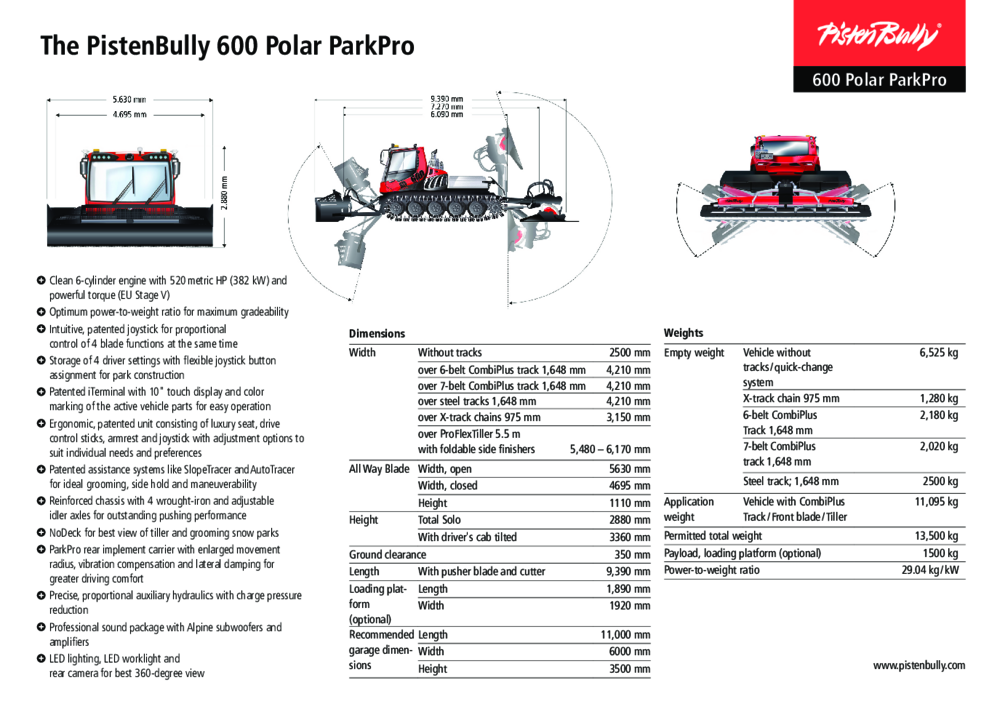

Technical data

Engine
TypeCummins X12
Number of cylinders6
Displacement11.8 l / 11,800 cm³
Performance according to ECE382 kW / 520 PS
Emission standardEU Stage V and EPA Tier 4F (USA)
max. torque2,375 Nm @ 1,200 U/min
Tank capacity300 l
Tank capacity DEF (AdBlue)38 l
Fuel consumptionfrom 19.5 l/h
Traction drive pump175 cm³
Traction drives125 cm³
Milling drive105 cm³
Technische Daten des PistenBully 400
Engine
TypeCummins X12
Number of cylinders6
Displacement11.8 l / 11,800 cc
Performance according to ECE512 hp
Emission standardEU Stage V and EPA Tier 4F (USA)
max. torque2,375 Nm @ 1,200 rpm
Tank capacity79 gal
Tank capacity DEF (AdBlue)10 gal
Fuel consumptionfrom 5.15 gal/h
Traction drive pump175 cc
Traction drives125 cc
Milling drive105 cc
Equipment

Transmission, Chassis & Wheels

  • Optimized transfer case with less noise and vibrations
  • Exclusively drawn axles for improved driving behavior
  • Optimized main frame and shorter half-axes for improved accessibility to the drive components
  • Reinforced rocker arm and wheel bearing due to larger tapered roller bearings
  • QuickAdjust for quick adjustment of the chassis via gearing
  • Individual axle loads and spring characteristics for improved ride comfort
  • More running smoothness and low pitching behavior thanks to damping composite plain bearings
  • Magnum star wheel
  • Fixed wheels
  • Functional mudguards against snow ejection
  • NoDeck for optimum visibility on chains and tiller

Hydraulics and working hydraulics

  • Electro-hydraulic brake
  • New pump transfer gearbox tilts the travel pumps outward by 5 for optimized accessibility
  • 20% higher liter output than the predecessor
  • Optimized control for better efficiency
  • High pressure filter
  • Calibrated valves with identical response in all vehicles
  • Best performance values for speed and responsiveness
  • Individually adjustable valve characteristics
  • All functions can be controlled proportionally independently of each other
  • Common parts (e.g. proportional valves and solenoid coils)

Cabin

  • Park comfort driver's seat mit Drehfunktion
  • Harness
  • Premium sound package with Alpine subwoofer and amplifier precisely matched to the vehicle
  • Rear camera color
  • DAB+ radio
  • Bluetooth hands-free kit
  • Connections: USB and audio in
  • Stick control with power potentiometer for temporary rise of engine speed
  • Inclination sensor

LED-Lighting

  • LED light package
  • LED SideFinder lights integrated into the carrier frame
  • LED TillerFlap lights
  • LED BladeFlap lights
  • LED turn indicators and rear lights integrated into the carrier frame

Electronics and batteries

  • Simple onboard diagnostics with error output in plain text
  • Automatic temperature compensation with cold run protection of the components
  • Maintenance-free batteries with higher cold start current
  • Service-friendly due to reduced variety of parts

Technology and engine

  • Trailer hitch
  • High-pressure connection for hydraulic front attachments
  • Hydraulic oil preheating
  • Charge pressure reduction
  • Standard platform
  • Foldable transport gallery

Cab and comfort

  • Steering wheel control incl. additional control panel for tiller
  • Auxiliary heating
  • Comfort air conditioning
