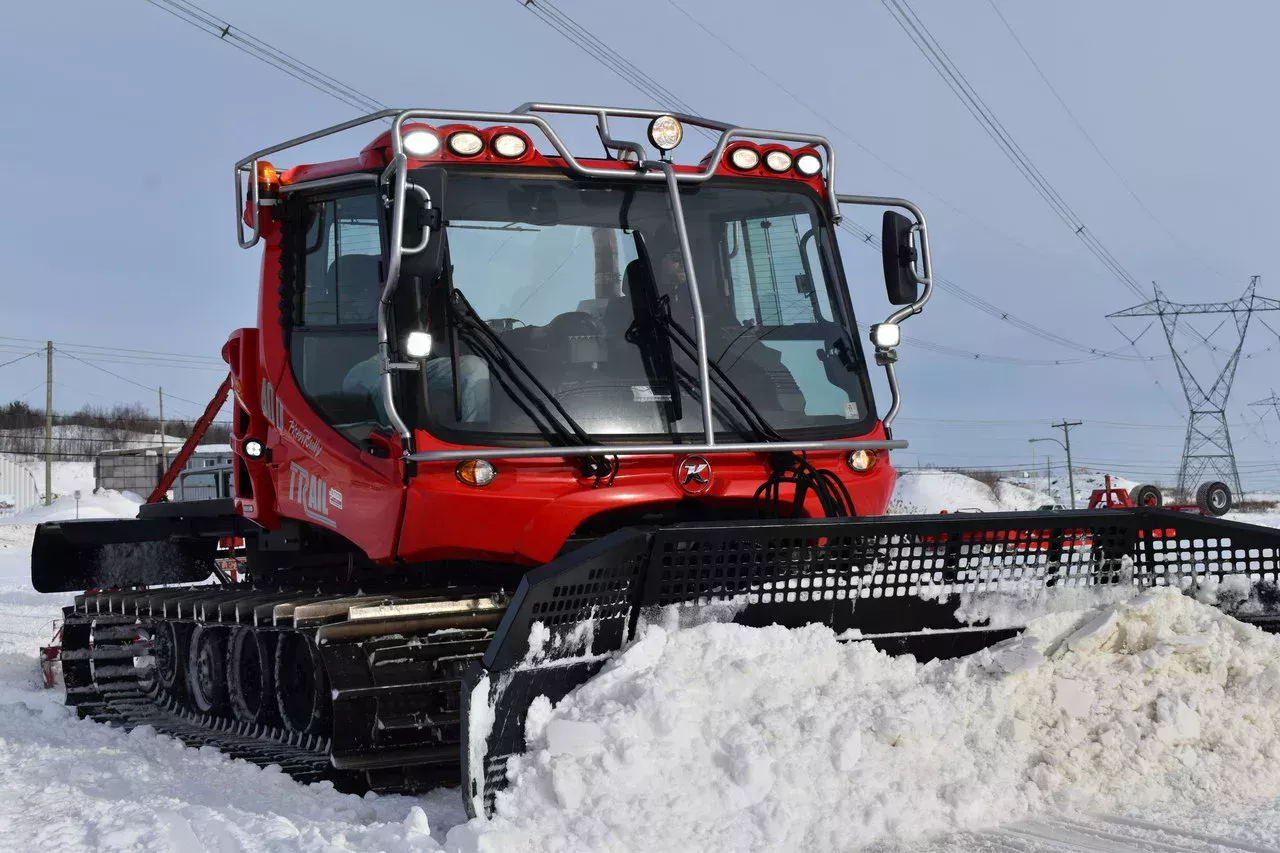

400 Trail
The game changer
Powerful. Clean. Comfortable
The 400 Trail has all the torque and traction you need to pull large drags, on any type snow condition, on any steep trail.

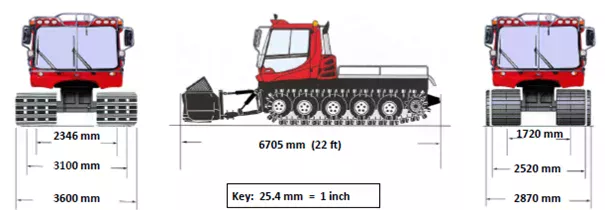

You can tailor the 400 Trail to fit narrow trails or wide.
Negotiate the narrow trail. Thanks to its maneuverability, the 400 Trail is adept for precise grooming work. Its high performance suspension gives a smooth ride.
Tier 4 Final for low exhaust emissions coupled with excellent fuel economy.
Just one glance inside the cockpit and it becomes clear. It's all about the driver. Get in and feel the quality.
The high performance rubber X Track provides traction when pulling drags in hard, icy snow conditions yet will not damage pavement when crossing roadways.

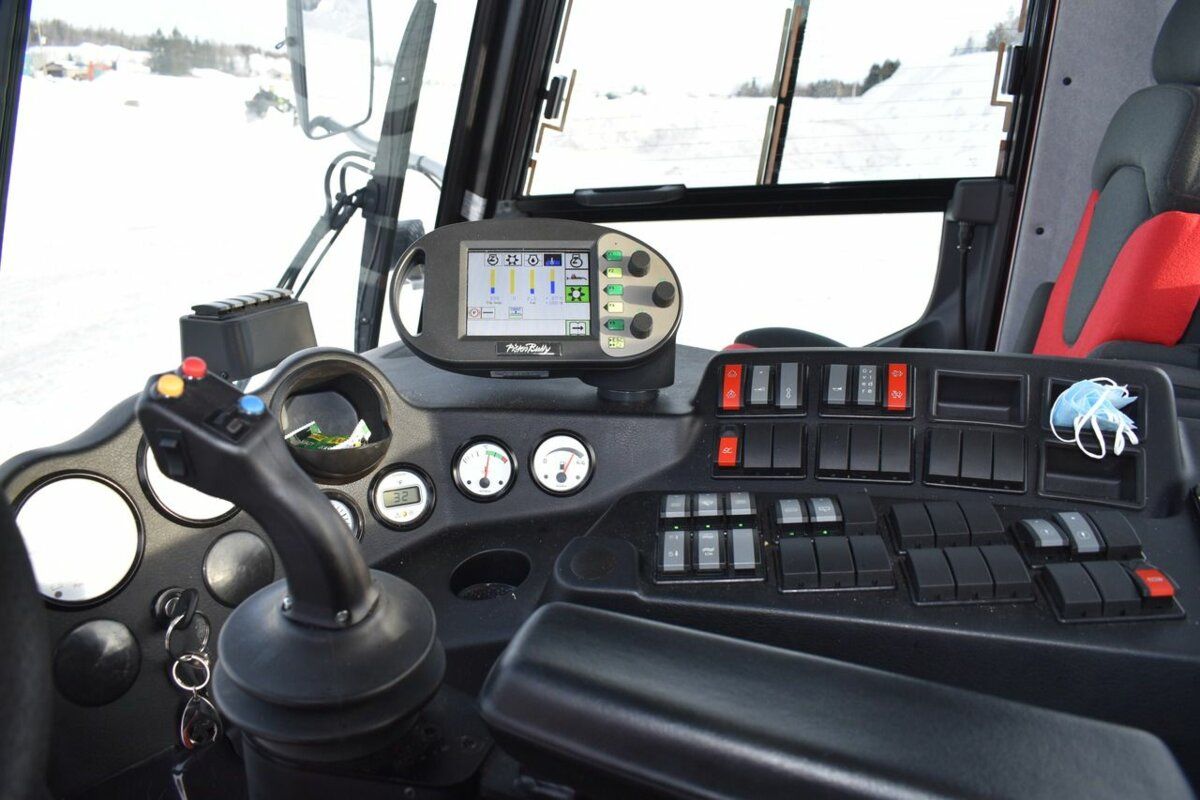

Dashboard
Fast on-board diagnosis: The PistenBully 400’s dashboard is clearly arranged and extremely intuitive to use. The clear display provides all important information and facilitates a fast on-board diagnosis.

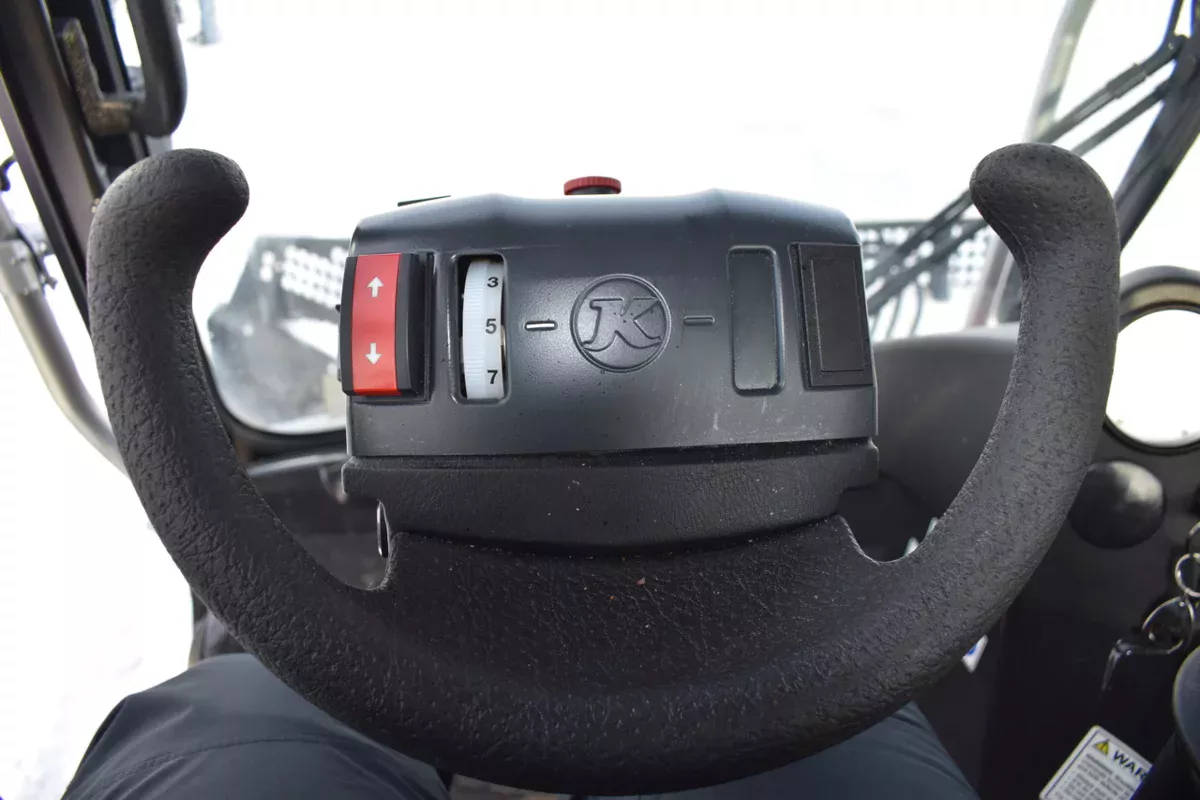

Semi-circular steering wheel
Precise steering: the semi-circular steering wheel is continuously adjustable horizontally and sits perfectly in the hand. Drivers can steer the PistenBully effortlessly.
Stick steering
As an alternative option to the steering wheel: drive control stick control for direct handling and steering. The power potentiometer controls the driving speed.
Engine
A high-performance engine for cost-effective peak performance with low emissions.
The powerful, 6-cylinder in-line diesel engine with common rail fuel injection offers low fuel consumption along with low noise and exhaust emissions. It complies with the Tier 4 final standard thanks to an exhaust gas after-treatment system.

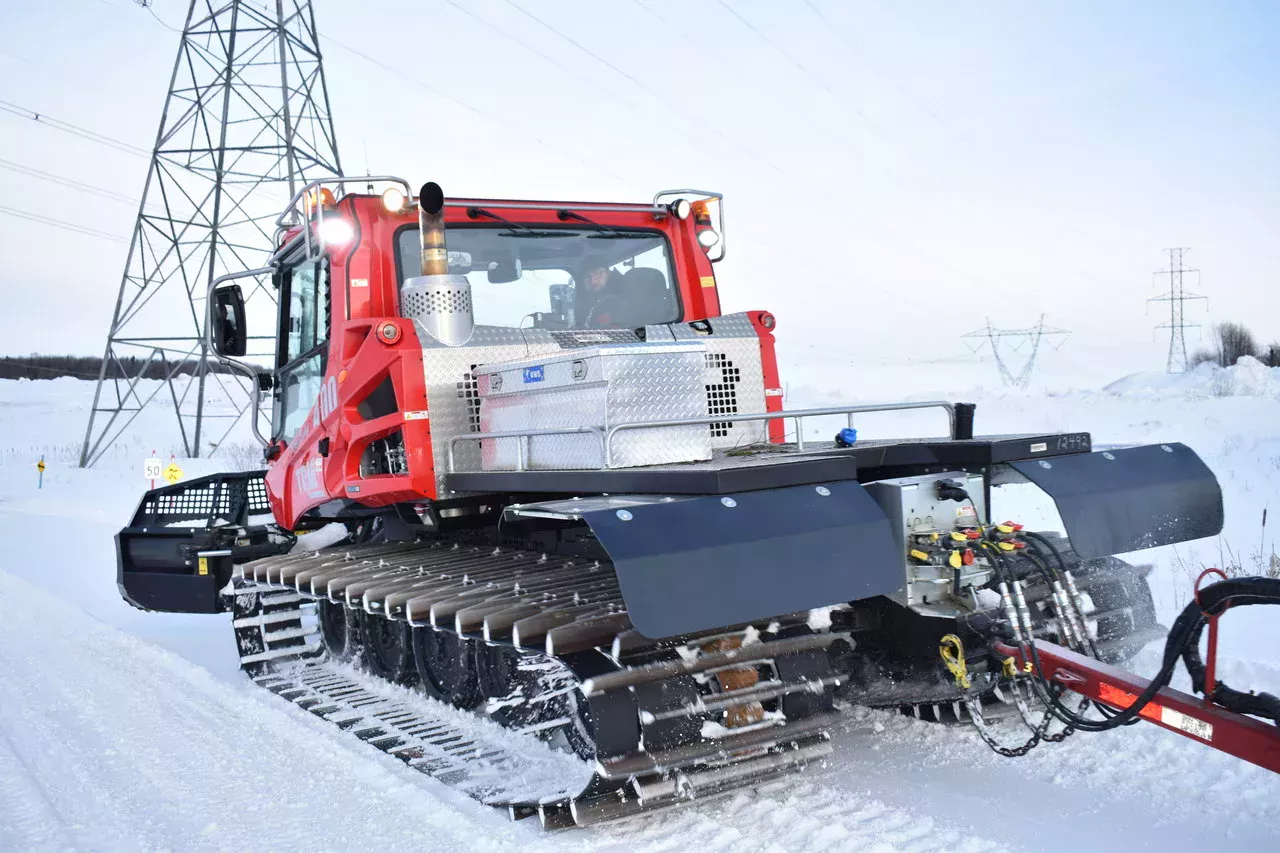

X-Track
High performance all season
Traction when you need it in hard icy snow. The X track ensures good stability and high grip pressure in the snow or mud yet it will not damage pavement when crossing road ways.
Durable and cost effective
The X track features the standard PistenBully belt and cleat design. A design proven over 45 years on PistenBullys worldwide. Component replacement enables cost effective repairs.

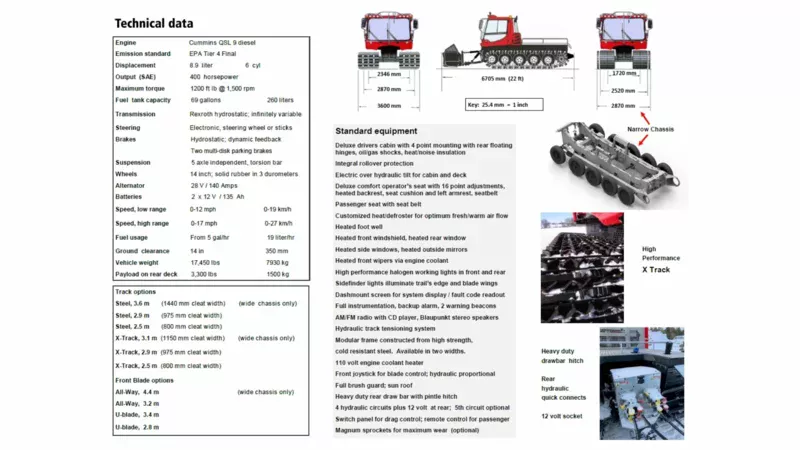

Technical data
| Engine | |
|---|---|
| Type | Cummins QSL 9 |
| Number of cylinders | 6 |
| Displacement | 8.9 l / 8,900 cc |
| Output | 300 kW / 400 hp |
| Exhaust emission standard | Tier 4 Final |
| max. torque | 1200 ft lb @ 1,500 rpm |
| Tank capacity | 260 l |
| Fuel consumption | from 19.0 l/h |
| Engine | |
|---|---|
| Type | Cummins QSL 9 |
| Number of cylinders | 6 |
| Displacement | 8.9 l / 8,900 cc |
| Output | 300 kW / 400 hp |
| Exhaust emission standard | Tier 4 Final |
| max. torque | 1200 ft lb @ 1,500 rpm |
| Tank capacity | 69 gal |
| Fuel consumption | from 5 gal/h |
As a full-service provider, Kässbohrer not only supplies the technology, but also the appropriate training and software.
Thinking about tomorrow today.
That's exactly what we've been doing since yesterday.
The topic of sustainability has a long tradition at Kässbohrer. It is firmly anchored in our corporate strategy and shows the demands we make on ourselves: To act responsibly with future generations in mind. To think holistically. Leading the way with innovative solutions to set new standards and help shape the future.
